Product Description

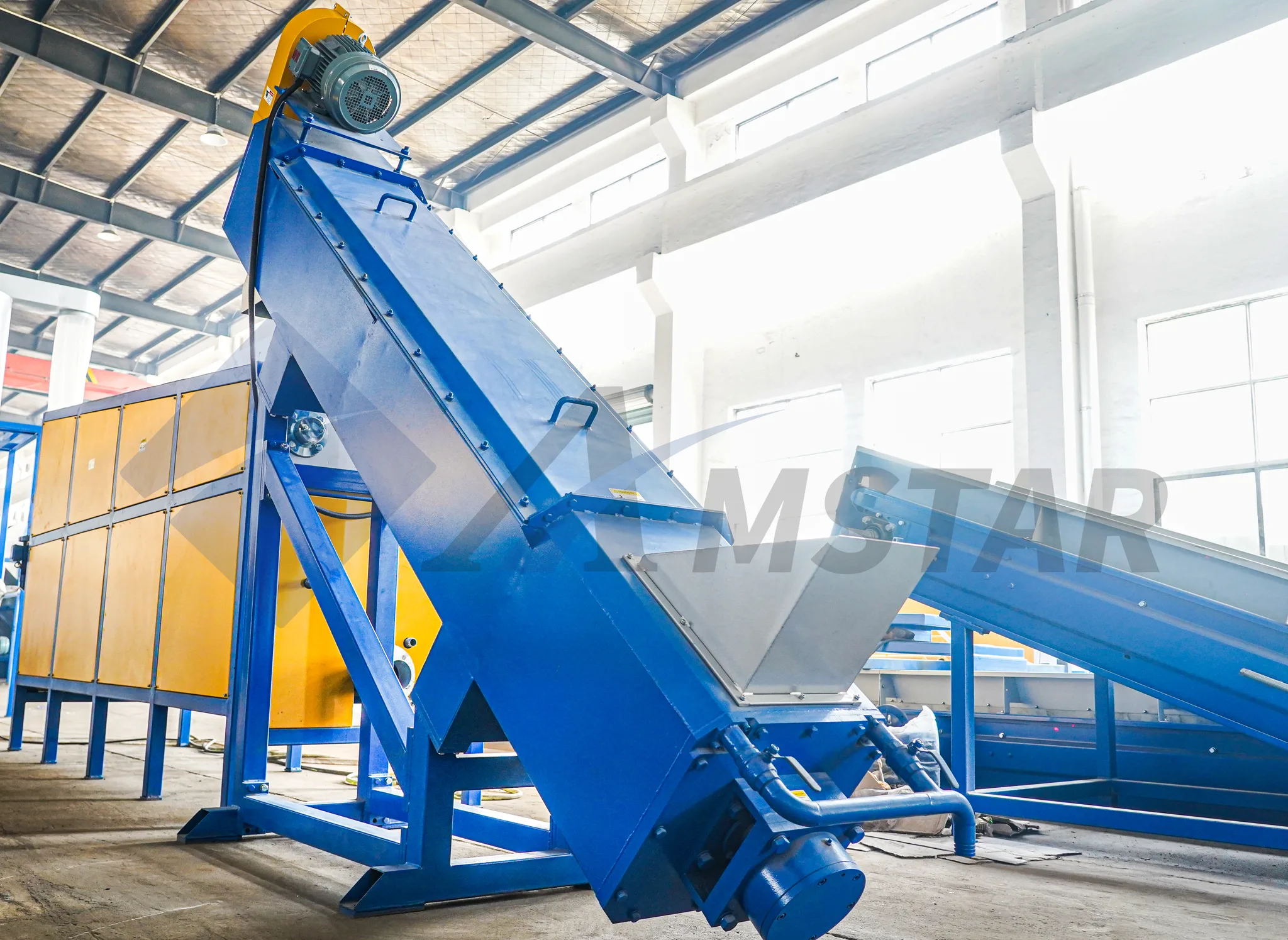

The Friction Screw Washer is specially designed for cleaning and conveying PE film in plastic recycling and washing lines. It uses high-speed mechanical friction to scrub dirt, sand, and other contaminants from the film surface, helping improve cleaning efficiency before the next processing stage.
Working Principle

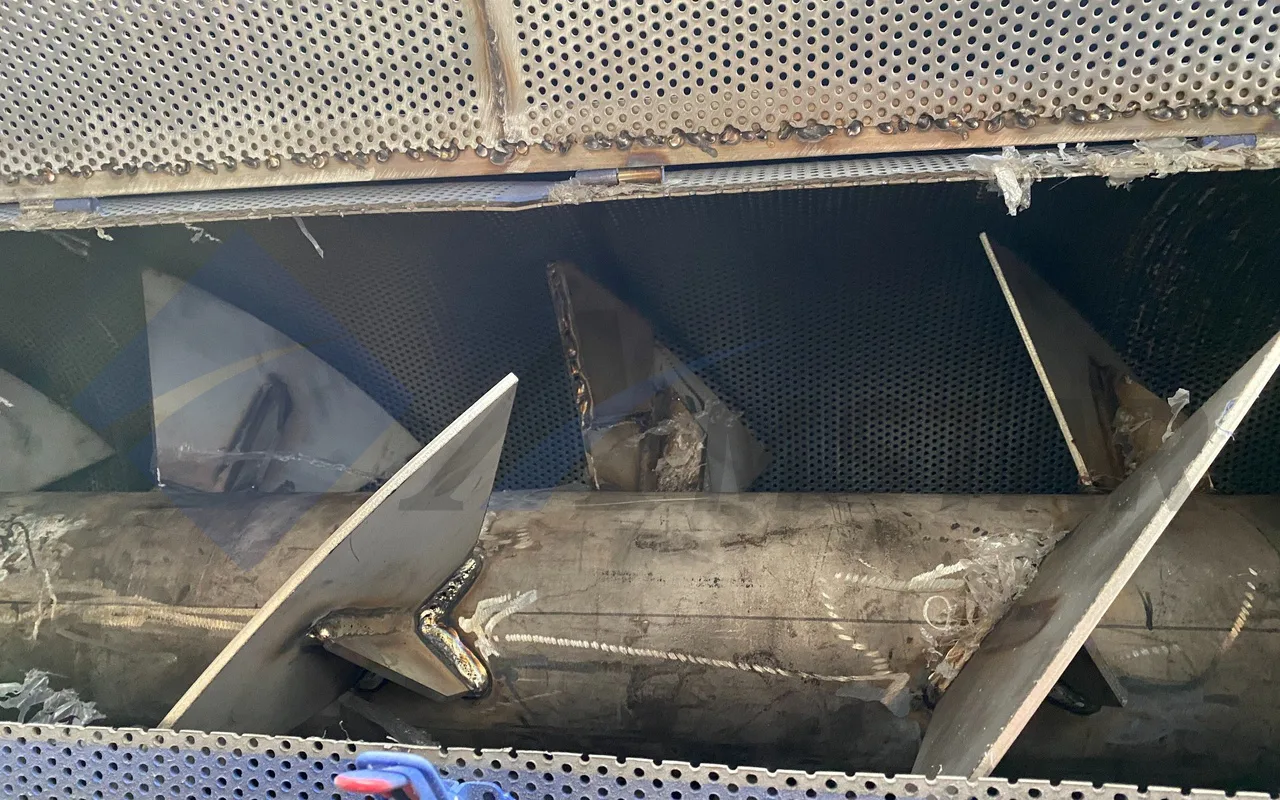

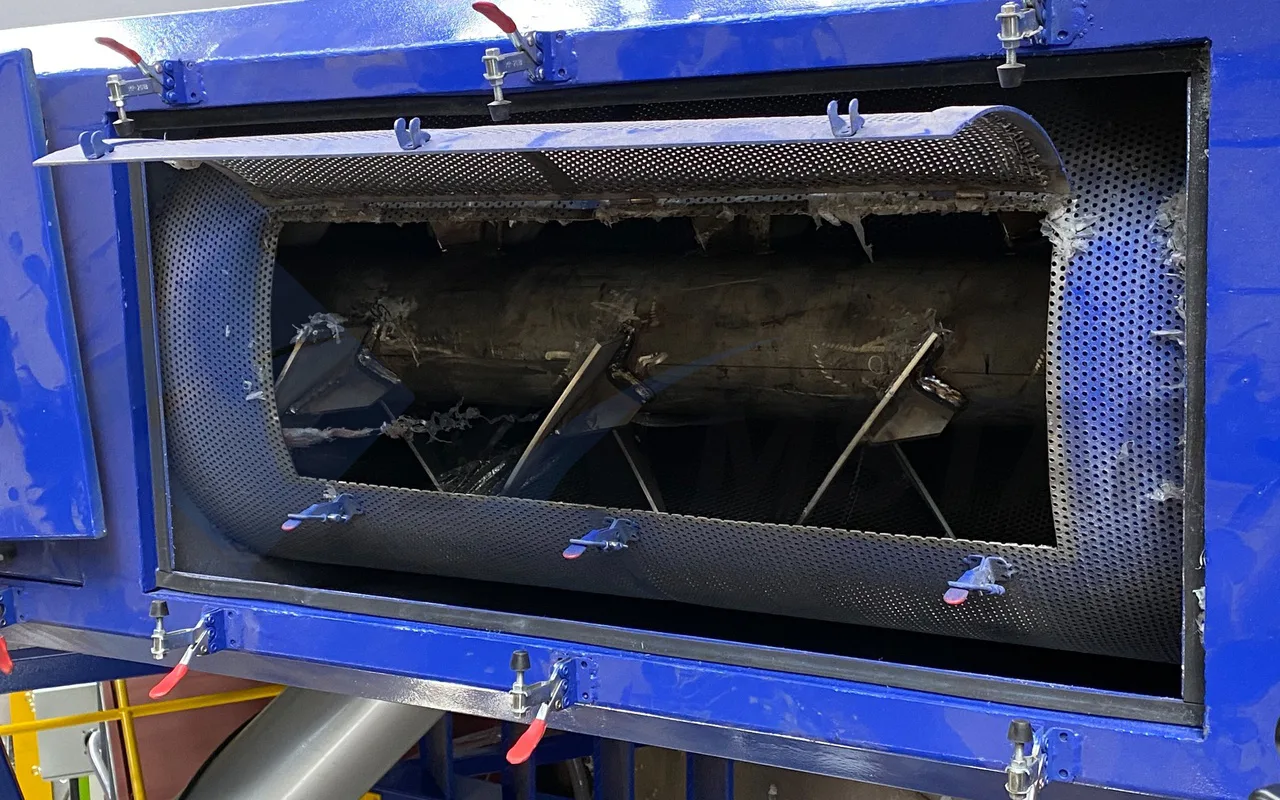

Inside the friction screw washer, a high-speed rotating shaft equipped with specially designed inclined paddles agitates and scrubs the PE film. Operating at approximately 500–600 RPM, the machine generates strong friction between the film and the material itself. Meanwhile, water is sprayed through the washing chamber to loosen and remove soil, sand, and other contaminants, with wastewater discharged through the filter screen.
Product Features
- Designed for PE Film Washing: Suitable for cleaning PE agricultural film, stretch film, and other flexible plastic films in recycling applications.
- Continuous Washing and Conveying: Combines friction cleaning with material conveying, allowing PE film to move continuously to the next processing stage.
- Efficient Contaminant Removal: High-speed mechanical friction and targeted water spraying help remove surface dirt, sand, and other impurities.
- Automatic Wastewater Drainage: The top water inlet and bottom drainage outlet support continuous washing and the removal of wastewater containing contaminants.
Specifications
Swipe or scroll horizontally to compare all columns.
| Model | Motor Power | Rotor Diameter | Rotor Speed |
|---|---|---|---|
| MCX-400 | 11 kW | 400 mm | 600 RPM |
| MCX-450 | 18.5 kW | 450 mm | 500 RPM |
| MCX-500 | 22 kW | 500 mm | 500 RPM |
| MCX-630 | 30 kW | 630 mm | 493 RPM |
More Images
Ordering
Production and delivery schedules depend on the configuration, component availability and agreed order milestones. Your written quotation and contract specify the lead time, its start date, and whether days are calendar or working days.
Contact us to discuss pricing and ordering details. Here is a brief summary of our ordering procedures.
