High Friction Washer

high-friction-washer-04

Product Description

The high friction washer is a German-designed, highly-effective machinery for cleaning PP / PE film in our standard PE film washing line.

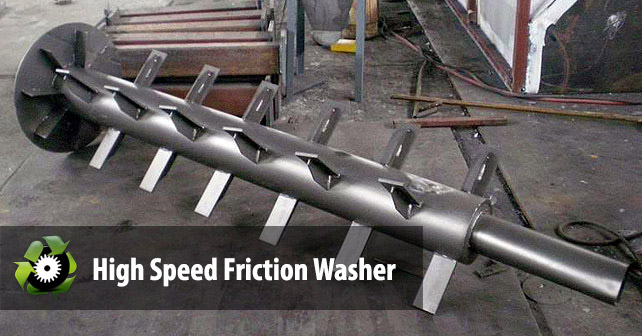

At the core of the high friction washer lies a long, fast-spinning shaft mounted with many tilted paddles that rotates at nearly 1,000 RPMs. As the PP / PE film enters this machine, the plastic film is mixed at high speeds within the washer where friction between each piece of PP / PE film helps scrub off dirt and debris. At the same time, the friction also causes the paper and cardboard to break down into tiny fibers.

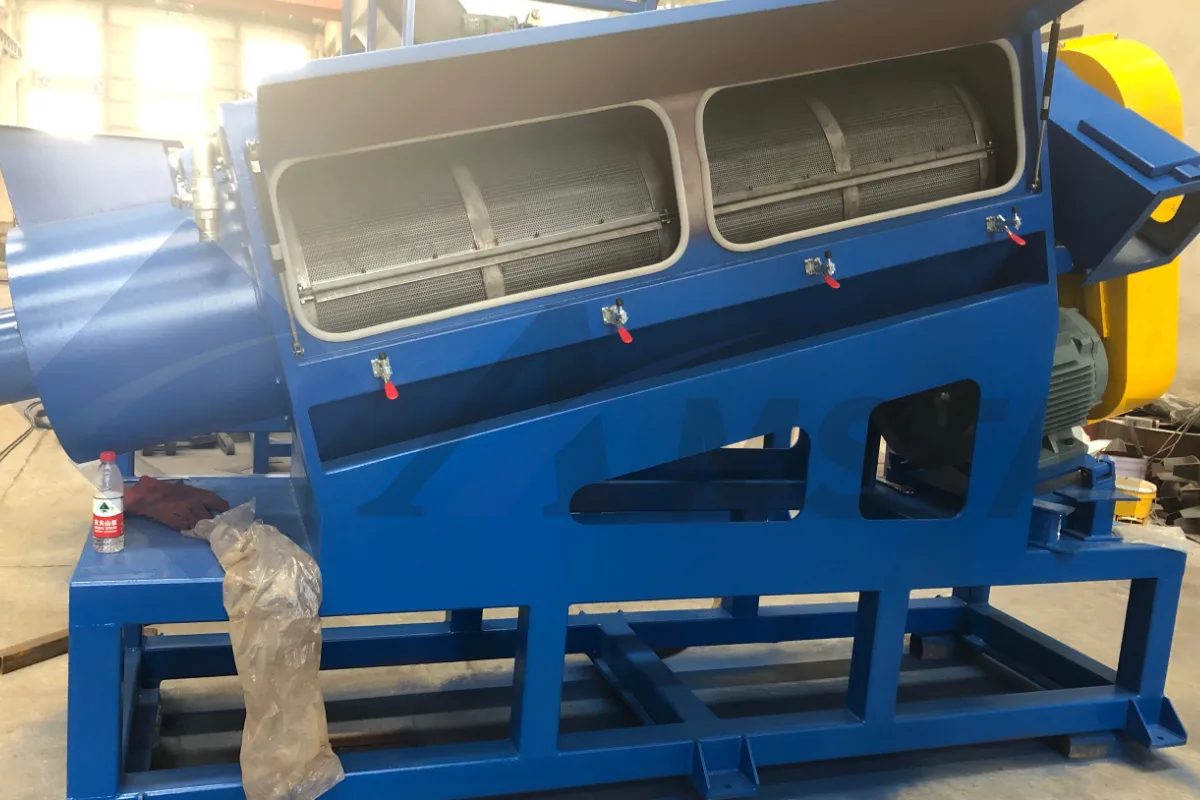

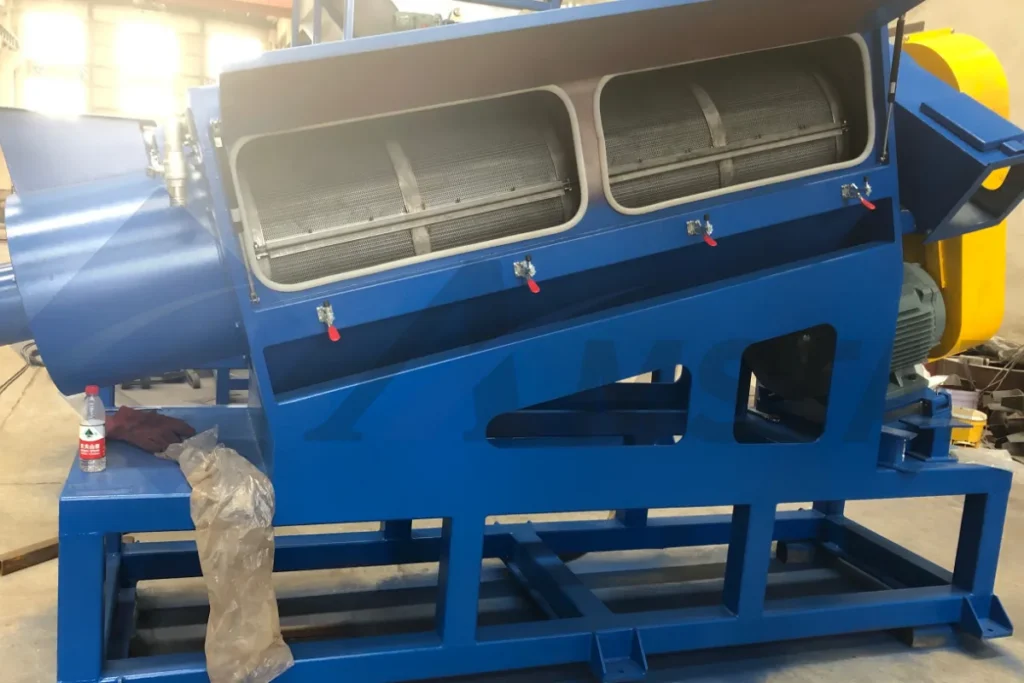

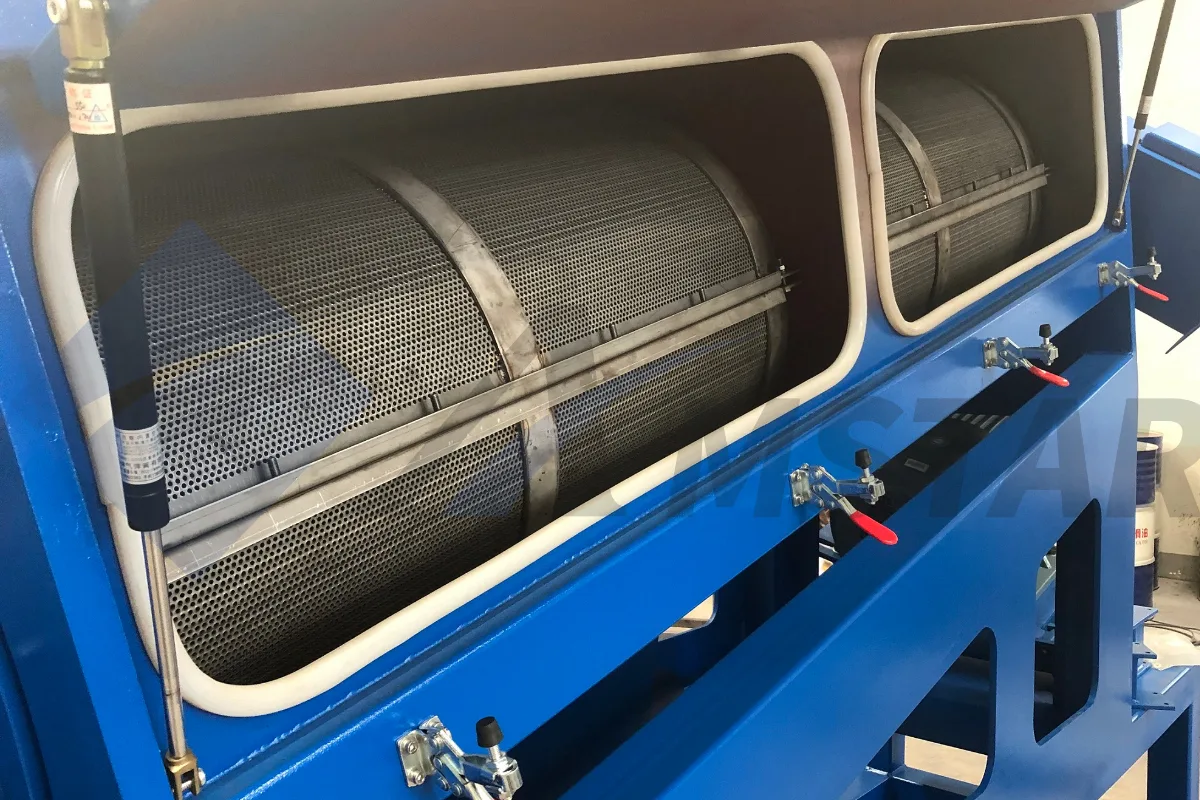

Surrounding the rotating shaft is a mesh screen tunnel used for dewatering and removing small contaminants (such as the paper fibers). A large retangular case surrounds the entire apparatus where water jets are mounted and sprays at the mesh screen preventing potential clogging that may occur.

Specifications

Model #: Motor Power: Main Shaft Diameter: Rotating Speed: Capacity:
HXJ400 37KW 400mm 1400 RPM 400 – 800 KG/H
HXJ550 45KW 550mm 1200 RPM 600 – 1000 KG/H
HXJ750 55KW 750mm 1080 RPM 1200 – 2000 KG/H



More Images

high-friction-washer-05

high-friction-washer-02

high-friction-washer-01

high-friction-washer-03

Ordering

Our lead time for single pieces of equipment is 30 days from the signing of purchase contract. For custom orders such as complete washing lines, the lead time is between 60 – 90 days. Actual lead times will depend on the project’s complexity as well as our factory’s availability.

Contact us to discuss pricing and ordering details. Here is a brief summary of our ordering procedures.
