Product Description
The High-Speed Friction Washer is designed for intensive cold-water cleaning in plastic recycling plants, with particular suitability for washed PE film such as LDPE and LLDPE agricultural film, packaging film, and stretch film. By using high-speed mechanical friction, it helps loosen dirt, paper fragments, sand, and other surface contaminants from the film before downstream separation and dewatering.
Working Principle
A long, high-speed rotating shaft fitted with multiple inclined paddles agitates the material at more than 1,000 RPM. As the PE film moves through the washing chamber, the rotating action creates strong friction between the material and the surrounding mesh screen, helping loosen stubborn surface dirt and lightweight contaminants. Water jets and spray nozzles rinse the material while allowing water to pass through the mesh with the separated impurities. The washer is installed at an incline, with material entering at the lower end and moving toward the upper discharge. This arrangement increases the material’s residence time for more effective cleaning.
Product Features
- High-Speed Friction Cleaning: The rotor operates at over 1,000 RPM to generate intensive scrubbing action for removing surface dirt and other contaminants from PE film.
- Designed for PE Film Recycling: Suitable for LDPE/LLDPE agricultural film, packaging film, stretch film, and other flexible plastic film streams, depending on material condition and line configuration.
- Water-Efficient Rinsing: Spray nozzles and water jets deliver water where it is needed, reducing the need to fill the entire washing chamber with water.
- Continuous Material Flow: The inclined washing chamber helps keep material moving through the machine while providing additional cleaning time.

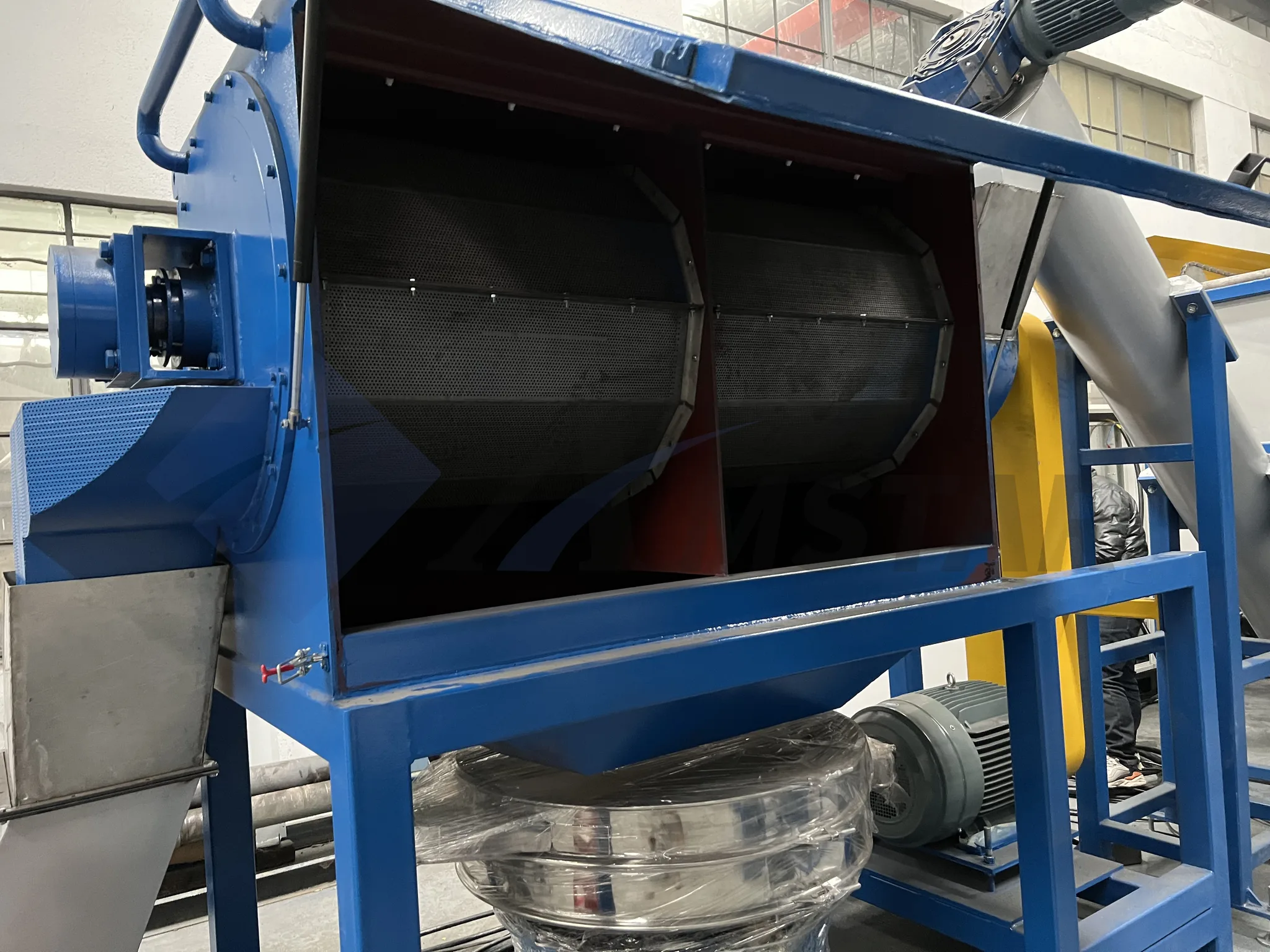

- Integrated Mesh Screen: The surrounding mesh screen allows wash water and loosened contaminants to drain away from the material.
Specifications
Swipe or scroll horizontally to compare all columns.
| Model | Motor Power | Main Shaft Diameter | Rotating Speed | Capacity |
|---|---|---|---|---|
| HXJ400 | 37 kW | 400 mm | 1,400 RPM | 400–800 kg/h |
| HXJ550 | 45 kW | 550 mm | 1,230 RPM | 600–1,000 kg/h |
| HXJ750 | 55 kW | 750 mm | 1,280 RPM | 1,200–2,000 kg/h |
| HXJ1000 | 90 kW | 1000 mm | 1,280 RPM | 2,000–4,000 kg/h |
More Images
Ordering
Production and delivery schedules depend on the configuration, component availability and agreed order milestones. Your written quotation and contract specify the lead time, its start date, and whether days are calendar or working days.
Contact us to discuss pricing and ordering details. Here is a brief summary of our ordering procedures.
